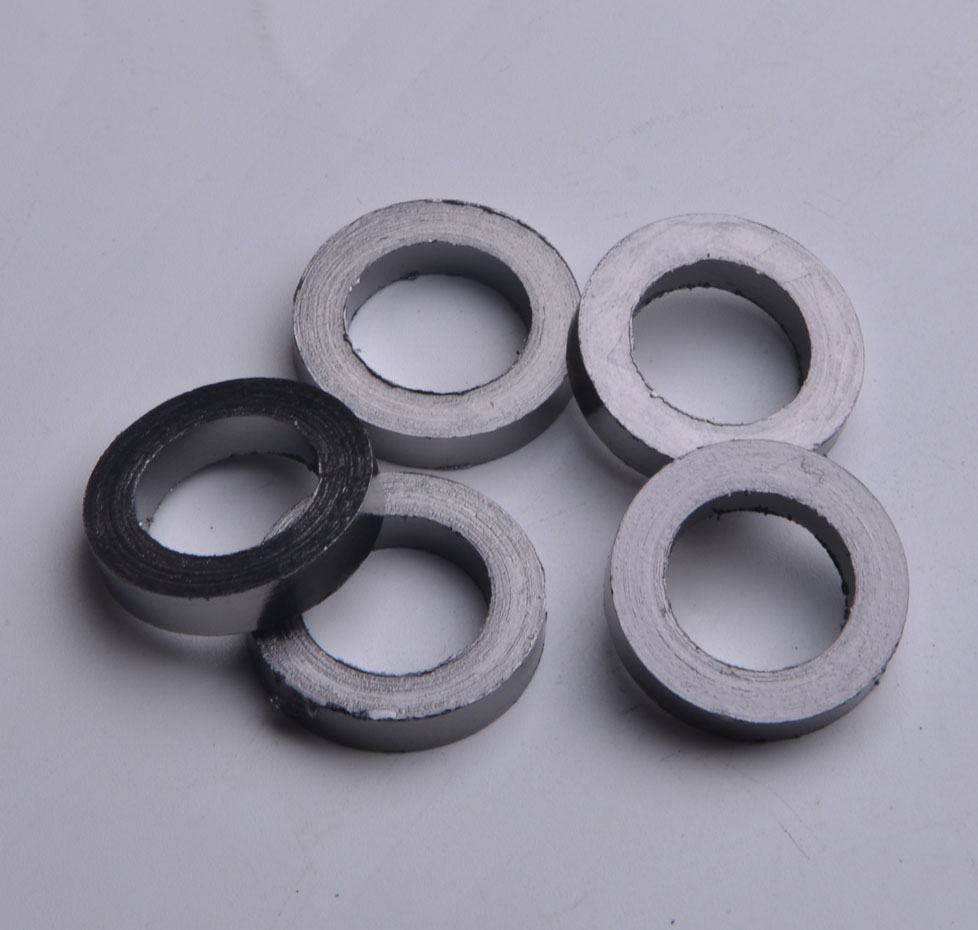

Expanded Graphite Ring

Product Type:XINSEN-TA

Features:

Expanded graphite ring is compressed by expanded graphite. It is used as sealing gasket, packing in all kinds of valves and pumps. These rings possess good resilience and chemical stability to be able to provide effective sealing function. Besides, they can be used together with other end ring. They are very stable and reliable, even if under awful working circumstances. Frequently they are used with reinforced expanded graphite rings forming a complete set.

Main specification:

PH range	0 ~ 14
Temperature	800 C Non oxidizing condition 580 C Steam 580 C Oxidizing condition -200 C Cryogenics
Pressure	35 MPa
Velocity	2~10 m/s
Density	1.6-1.7 g/cm³
