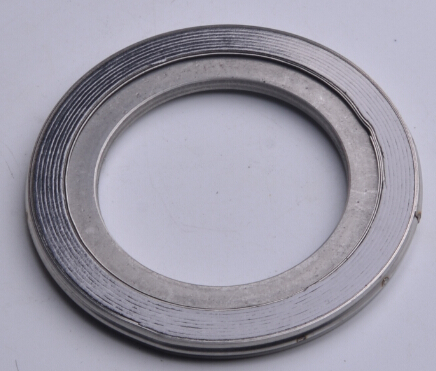

Spiral Wound Gasket With Inner Ring

Product Type:XINSEN-SB

Features:

Solid inner ring spiral wound gasket has an inner ring. Solid inner metal ring acts as a compression stopper and fills the annular space between flange bore and the inside diameter. Designed to prevent accumulation of solids, reduce turbulent flow of process fluids and minimize erosion of flange faces. It is suitable for male and female pipe flanges.

Style	Construction	Flange	Hoop material	Filler		Inner & outer Material	Size (mm)	Thickness (mm)
				Material	Code			V	W
	Basic type	Tongue and Groove	304 304L 316 316L Alloy 825 Inconel 625 Monel 400 ss32750	Asbestos Graphite PTFE Non-asbestos	ASB FG PTFE NACF	Carbon steel 304(L) 321 316(L) Alloy 825 Inconel 625 Monel 400 ss32750	16-3000	3.2 4.5	4.8 5.5 7.5
	With outer ring	Raised face Flat face
	With inner ring	Male and Female
	With inner, outer ring	Raised face Flat face
	For heat exchanger	Heat exchanger
