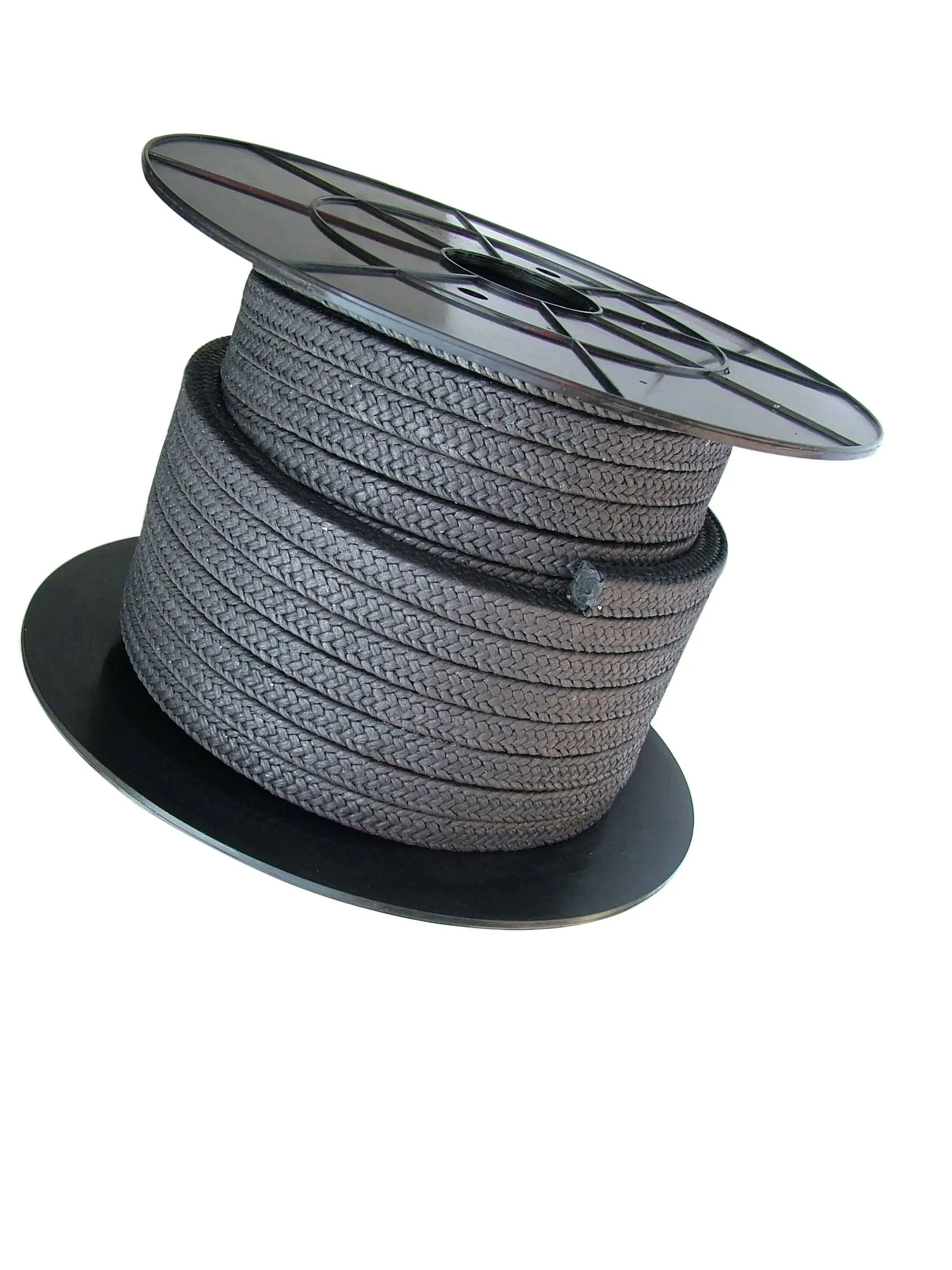

Ramie Graphite Packing

Product Type:XINSEN-BZG

Features:

Ramie graphite packing is made from ramie fiber which is treated with special process and high-temperature lubricant. It's an ideal gland packing to be used in sealing of ash-removing pump, sediment pump,boosterpump, and water feeding pump of power station,as well as high perssure slurry pump of oil field and fluid pumps of mine.

Application conditions:

     1)Working temperature: -40 ~ +140 centigrade
     2) Max. working pressure:3 Mpa(rotary pump)
         Max. working pressure:5Mpa(reciprocating pump)
         Max. working pressure:12Mpa(valve)
     3)PH value:5-12
     4) Linear speed: 10M/S(rotary pump)
         Linear speed: 2M/S(reciprocating pump)
         Linear speed: 2M/S(valve)
      5) Cross Section: 1/8" ~ 3"(3X3-75X75mm)
      6) Density: 1.30 ~ 1.40g/cc

Note:
The packing core can be replaced as red rubber core as requested.
