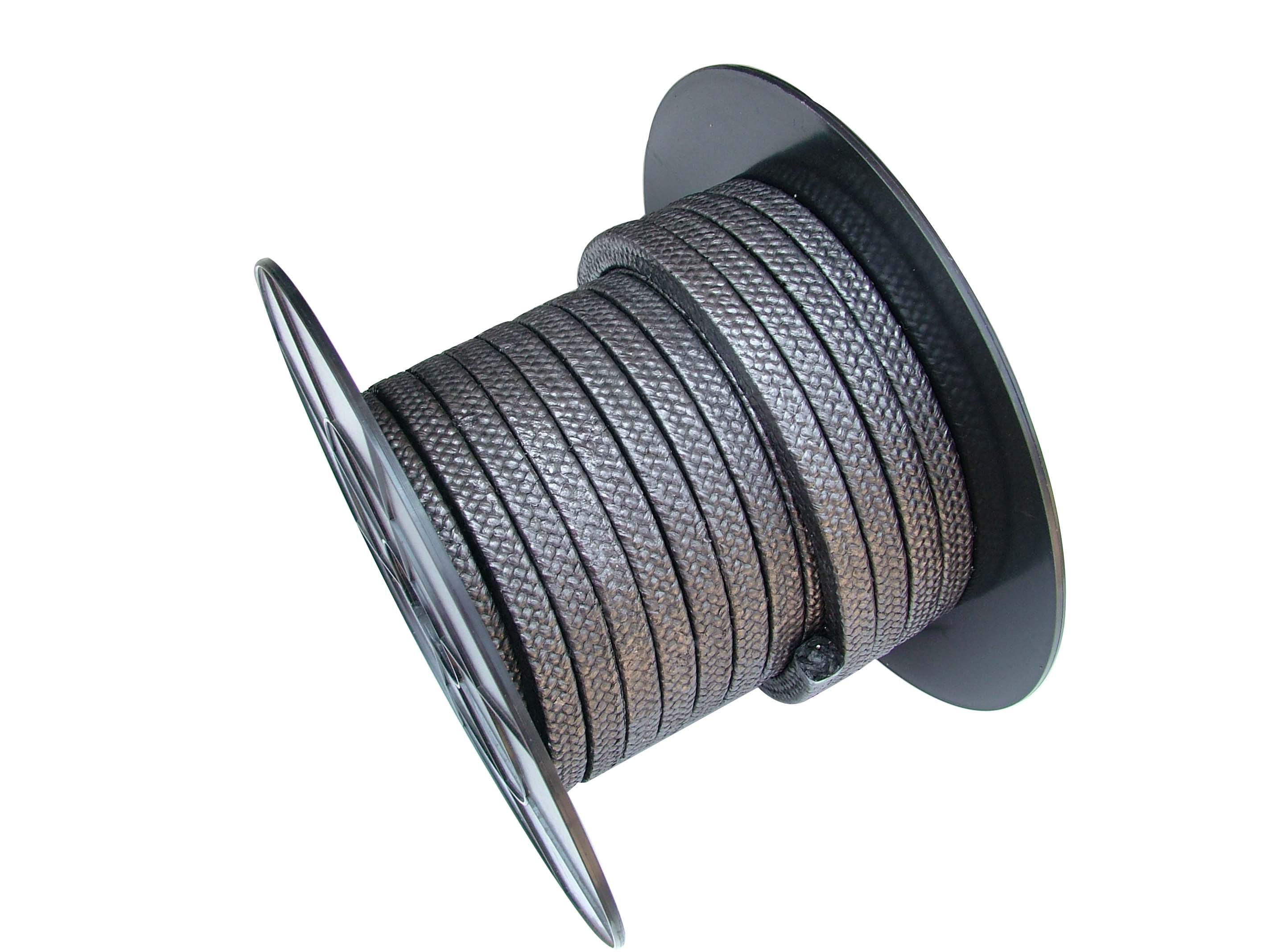

Carbonized Fiber Packing With Graphite

Product Type:XINSEN-BCG

Features:

    Carbon fiber packing with graphite is woven of strong carbon fiber after softening treatment and impregnation with a mixture latex of fine graphite powder, PTFE dispersion and lubricant. It is chemical resistant, heat conductive and with high strength, so this item is widely used with revolving and reciprocating pumps in which chemical corrosive media and particle grains exist. The successful test result in application of high pressure ammonium and luiquid ammonia pumps proved it's the best sealing material for high pressure a, high temperature and corrosion.

    Application conditions:
       1) Max. working temperature:-200 ~ +650(STEAM)
                                                      -200 ~ +565(ATMOSPHERE)
       2)Max. working pressure:5 Mpa(rotary pump)
          Max. working pressure:15Mpa(reciprocating pump)
          Max. working pressure:25Mpa(valve)
       3)PH value: 0-14
       4)Linear speed: 0-20M/S(rotary pump)
          Linear speed: 0-2M/S(reciprocating pump)
          Linear speed: 0-2M/S(valve)
       5) Cross Section: 1/8" ~ 3"(3X3-75X75mm)
       6) Density: 1.35 ~ 1.45g/cc
       Regular package: 5 or 10kg/roll
   Note:
       The special lubricant can be added as requested,then the density of packing will be 1.60-1.70g/cm³
The packing core can be replaced as red rubber core as requested.
